What is a Digital Mitre Saw Fence?

If your operators are walking 10 kilometres a day just to slide a manual stop block up and down a rail, you aren't running a factory, you're running a fitness camp.

A digital mitre saw fence is a computer-controlled measuring stop that replaces a manual tape measure on your saw, and it allows operators to enter a precise cut length into a screen for automatic positioning. This completely eliminates the need for hiking back and forth for manual measuring and marking. By upgrading your workstation with this technology, you are effectively reducing cutting time by over 50% compared to manual systems.

The technology we use has been around for many years in many forms, and it is basically the same technology that is used in computer-operated milling machines. Instead of relying on a tape measure and a mechanical clamp, a digital stop system uses a small computer to drive a motor, and this moves the stop to the exact millimetre you require.

How Does a Digital Mitre Saw Fence Work?

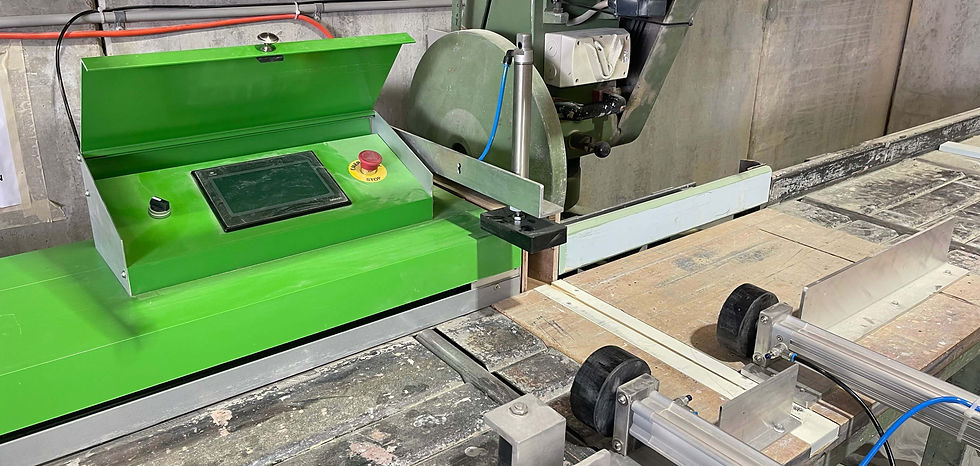

Breaking down how these systems operate is straightforward when you look at the individual parts. The system replaces your standard manual stop with a motorised carriage on an aluminium track.

Key Components: Touchscreen HMI and Automated Positioning

The brain of the machine is the PLC, which stands for Programmable Logic Controller, and the part you interact with is the HMI, which stands for Human-Machine Interface. The HMI is simply the industrial-grade touchscreen where you enter your numbers.

When you type a dimension into the touchscreen HMI saw display, the PLC calculates the distance the stop needs to move. It does this by sending a specific number of pulses to a servo motor, and this motor turns a gear connected to a steel-reinforced belt. The belt then pulls the mitre saw stop along a linear guide rail to the precise location.

Simple Digital Entry Process

Operating a digital fence is designed to be as simple as possible to reduce operator error. The basic bump stop workflow looks like this:

• The operator sets the raw material on the conveyor and trims the end to get a clean edge.

• They enter the required length they wish to cut on the touchscreen display.

• The automated fence positioning system drives the stop to the exact measurement, and the operator slides the material up to the stop to make the cut.

• The touchscreen displays the current length and holds that position firmly until a new value is entered.

Digital Mitre Saw Fence vs Manual Measuring: A Side-by-Side Comparison

To understand the value of a digital system, you need to look at the physical steps involved in processing material the traditional way.

The Traditional Manual Measuring Workflow

With a manual system, the operator has to walk away from the saw blade, read a tape measure along the bench, lock the physical stop in place, and then walk back to the saw to cut the material. If they need ten different lengths, they have to repeat this walk-up process ten separate times. This is extremely labour intensive and time-consuming, and it leaves room for costly measuring errors.

Eliminating Walk-Ups with Touchscreen Input

A digital mitre saw fence removes the walking entirely. The operator stays positioned at the saw, types the precise cut length into the HMI, and lets the machine do the movement. Because the operator does not have to constantly adjust clamp positions or walk up and down the material, you can easily double your cutting productivity.

Table: Manual vs Digital Comparison

Feature	Manual Measuring System	Digital Mitre Saw Fence
Positioning Method	Operator manually slides and locks the stop.	Motorised system positions the stop via touchscreen.
Time Required	High; requires walking to set each new length.	Low; reduces cutting time by over 50%.
Accuracy	Dependent on operator eyesight and tape wear.	Consistently accurate to ±0.1 millimetres.
Operator Fatigue	High physical toll from constant movement.	Minimal physical effort required.

Why Australian Manufacturers Are Switching to Digital Mitre Saw Fences

Since we started demonstrating this product to various market segments, it has become obvious that businesses are looking to automate and speed up their cutting processes without paying the exorbitant prices charged by European and US suppliers.

Applications in Timber, Aluminium, and Cabinetry

We have not come across any material to date which cannot be processed through a digital stop system. It is heavily utilised in the aluminium window industry, but it is just as effective for timber truss manufacturers, shower screen builders, and wardrobe manufacturers. For lighter sections, we simply use more rollers on the conveyor to support the material, and for heavier jobs, our upgraded motors can process sections up to 50 kg in weight.

Kangastop's Expertise in Automated Saw Solutions

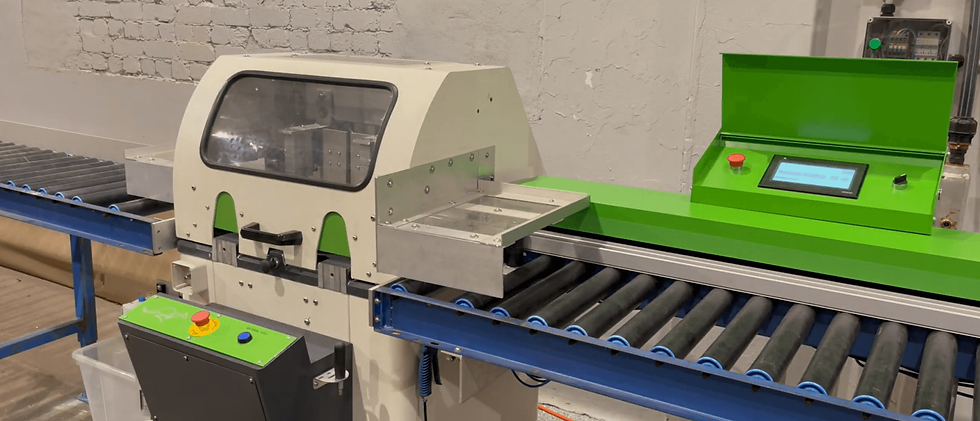

Many customers told us they wanted an integrated, turn key solution where we incorporate the saw with the measuring device. We supply our own manufactured saws because we take responsibility for both the measuring system and the cutting system, and the customer only has to make one phone call if they need help. Because we manufacture locally, this ensures ready access to spare parts and local support without waiting on overseas shipping, and this is backed by our 10-year warranty covering both parts and labour.

Frequently Asked Questions About Digital Mitre Saw Fences

Can a digital fence be retrofitted to my existing machinery?

Yes. A digital mitre saw fence can be integrated with drop saws, drill presses, and punches. We provide a steel conveyor mounting kit that allows the unit to be easily mounted to most steel-framed conveyors by simply drilling a few holes.

How accurate is a digital mitre saw fence?

By using industrial-grade servo motors and encoders with constant feedback, a digital measuring system provides a repeatable accuracy of ±0.1 millimetres. This eliminates the need to have assembling staff trim sections because they were cut slightly too long or short.

Does a digital stop require a special power supply?

No. The standard digital fence units operate on a standard 240 V, 10 amp supply, and they include an integrated earth leakage circuit breaker.
